High Efficiency 13.25 m Aluminum Fireboat

Name: High Efficiency 13.25 m Aluminum Fireboat
Brand: Qingdao Dookyu Crown Marine Co., Ltd.
Availability: InStock

Large Image : High Efficiency 13.25 m Aluminum Fireboat

Product Details:

Contact Now

Detailed Product Description

Products Description

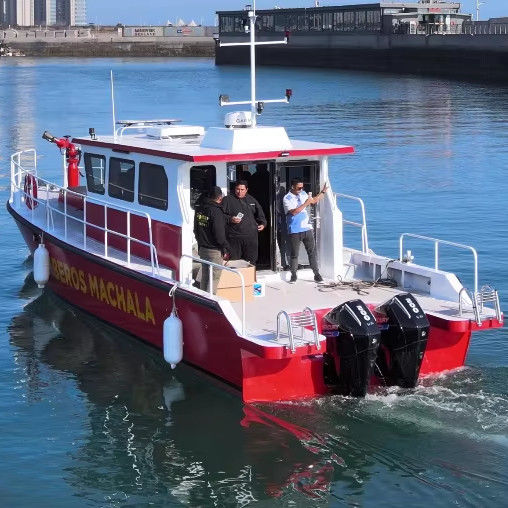

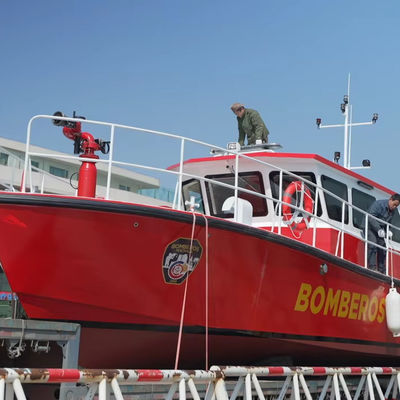

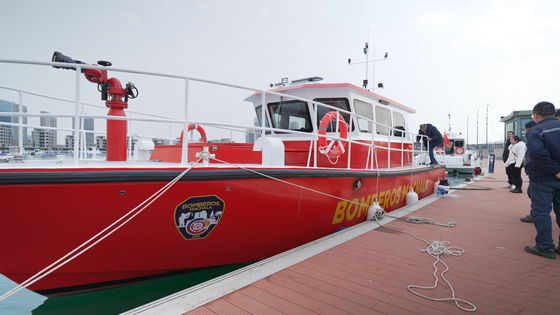

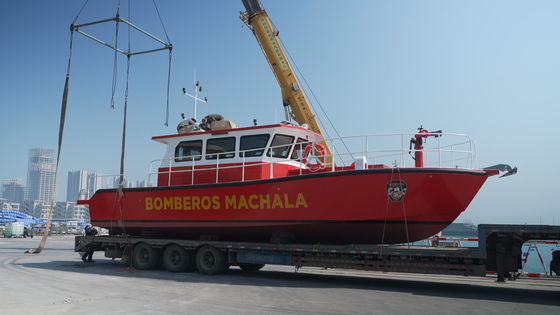

13.25 m aluminum high efficiency fire boat

This 13.25-meter aluminum alloy firefighting and rescue boat is specifically designed for maritime rescue missions, with excellent performance and functionality. The following are the main characteristics of the boat:

Size and structure: The hull is 13.25 meters long and 3.6 meters wide, made of sturdy aluminum alloy material to ensure the durability and lightweight design of the hull. This enables the boat to have excellent maneuverability and stability, adapting to various complex sea conditions.

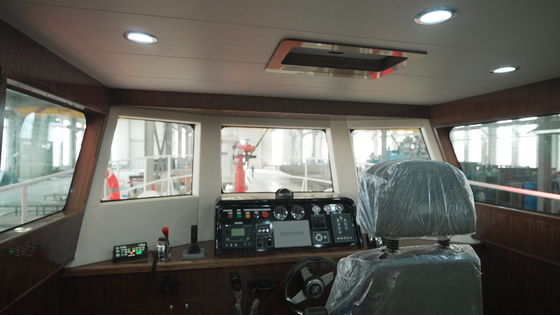

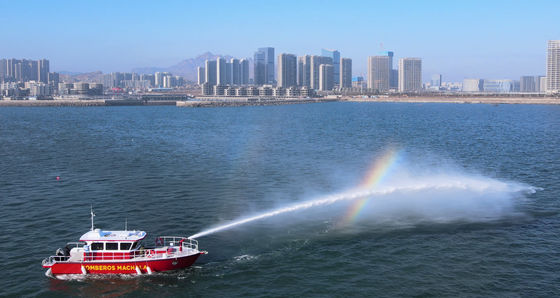

Powerful power system: The boat is equipped with two 200HP Mercury engines, providing strong power and excellent speed performance. This enables the boat to quickly reach the accident site and quickly carry out firefighting and rescue operations. Firefighting equipment: This fire boat is equipped with a 1500 gram flow rate fire pump and fire monitor, which can provide efficient water supply to cope with various fires of different scales. The 500 liter gasoline fuel tank equipped ensures that the boat can continue to operate during the mission. Multi functional compartment: The boat is equipped with a multifunctional compartment, providing a comfortable working environment for rescue personnel. The interior design of the cabin is reasonable, equipped with necessary facilities and equipment to support the smooth progress of rescue missions.

Product Paramenters

Model	Dk1325
Length overall (Loa)	13.25m
Breadth B	3.6m
Depth moulded	1.2m
Designed draft	0.36m
speed	20kn-30kn
Main engine power	200HP*2
Fuel oil	500L

Specification+process pictures

configuration list

main boat body 5083 H116 Alloy	superstructure 5083 H116 Alloy	welding wire	high purity aregon	surface treatment,paint
out board 250 HP	600L petrol tank	hydraulic steering machine	electric steering system	self-priming diesel fire pump unit 1500 gallons/min,lift 60 meters
electronic steering system	self-priming diesel fire pump unit 1500 gallons/min,lift 60 meters	electronically controlled fire monitor	fire water piping system	mixing proportional valve
foam box 150L	marine subsea main valve	bilge water system	DC switchboard	DC air conditioner
storage battery	battery switch	multi-position control panel	navigation signal control panel	bilge water alarm system
DC bilge pump	radar	VHF(with DSC)	magnetic compass	radar transponder
pulse long row of police lights(with shouting radio)	electric flute	navigation signal light	bow searchlight	stern deck light
whole ship lighting,hull lighting	LED light strip	shore power outlet	charger	marine cable
fire pump room ventilation system	DC electric windlass	stainless steel anchor 15kg	anchor bracket,guide sprocket,chain stopper	anchor chain
with bollard	life suit	life buoy	fire extinguisher	medical stretcher
driving console	stainless steel salon door	tempered glass	driving seat	double seat
sofa cupboard	cab decoration materials	lamp mast	hatch cover	deck lock
drain	hardware	railing	boarding ladder	rubber fender
