13m Offshore Aluminum Alloy Boat Working Landing Boat

Name: 13m Offshore Aluminum Alloy Boat Working Landing Boat
Brand: Qingdao Dookyu Crown Marine Co., Ltd.
Availability: InStock

Large Image : 13m Offshore Aluminum Alloy Boat Working Landing Boat

Product Details:

Contact Now

Detailed Product Description

Products Description

This 12.8-meter aluminum alloy pilot boat has become an ideal choice for multi-purpose vessels with its excellent performance, durable materials and user-friendly design. 1. High-performance power system Equipped with two 150kW engines, it provides strong power to ensure that the boat can sail quickly and smoothly in any waters, easily reaching a high speed of 26-28 knots. 2. Large-capacity fuel reserve The 600L gasoline tank design meet the needs of long-term sailing and reduce the trouble of frequent refueling. 3. Strong and durable aluminum alloy material The hull is made of high-strength aluminum alloy, which is not only light and durable, but also has excellent corrosion resistance, suitable for use in various environments such as oceans, lakes, and rivers. 4. Spacious and comfortable design The boat is 3.15 meters wide and 1.68 meters deep, with an optimized internal layout, providing passengers with a spacious and comfortable riding space, suitable for leisure and entertainment, business reception or professional operations. 5. Energy-saving and efficient Through scientific design and efficient power system, this aluminum alloy boat achieves a perfect balance between fuel economy and speed performance.

Product Paramenters

Maximum length (including on-hook)	12.8 m
Ship width B	3.15m
Type depth D	1.68m
Design draught	0.56m
Full load displacement	10.8t
Passenger	9
Design speed	26kn
Main engine power	2*150kw
Fuel oil	600L gasoline

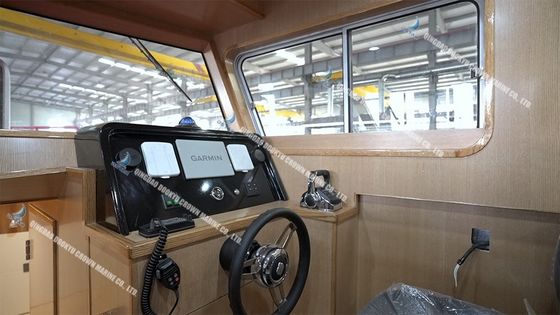

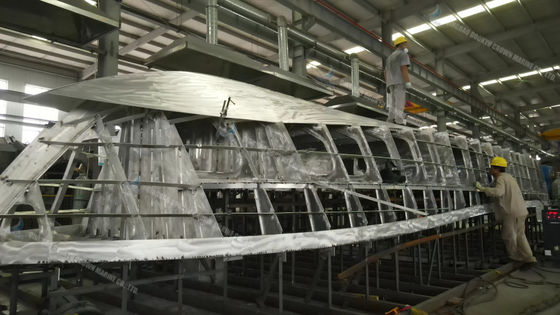

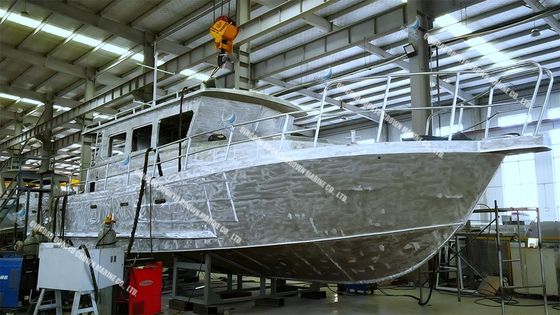

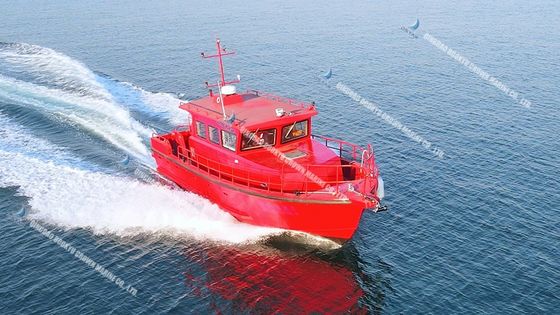

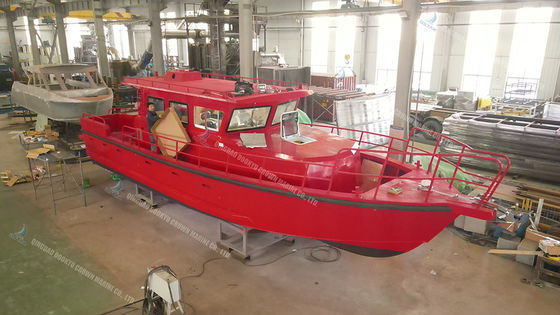

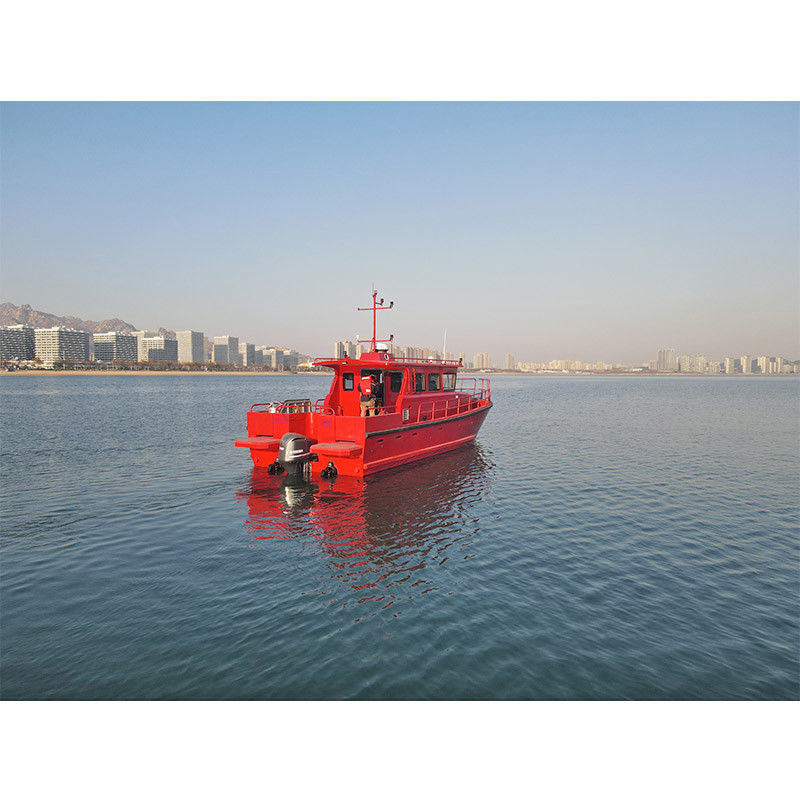

Details Images

Company Profile

Leading Design

Dookyu, international designers based in the CN with over 600 craft in-service Worldwide. Dookyu specialise in the design of working craft and yacht used by Operators including Port & Pilotage Authorities, Government Navies, Shipowner and Travel agency. The designs range from 5m - 21m in length with options on materials and propulsion to offer speed capabilities up to 50 Knots. Specific vessel types include Pilot, Patrol, Rescue, Fire, Amphibious, Transport, Yacht and all-round Workboats from the proven range.

Dookyu work with Owners, Yards and Operators Worldwide to provide a design to best meet the specific project requirements. With over 15 Years in business Dookyu are able to offer their technical support, industry experience and independent advice for a successful project outcome.

Configuration list

Machinery	Aluminum 5083-H116 CCS	800L diesel engine	Diesel engine 320HP	150L fresh water tank
Bilge tank device	Automatic bilge	Manual bilge pump	Hydraulic steering	Generator smoke exhaust
Configuration device	Fire damper ventilation	Engine room ventilation	Fuel tank ventilation	Fan
Electric parts	Generator 8kw	Battery 200Ah 12V	Air Conditioner	Integrated switch panel
Intelligence system	Integrated switch panel	Navigation signal control panel	Bilge Water Alarm System	Electric wipers
Appliances	Refrigerator	Induction cooker	Battery isolation switch	Battery charger
Navigation	GPS	Radar	Magnetic compass	Navigation signal lights
Communication	VHF	AIS	Electric Flute	Remote control searchlight
