DK-CM32 9.8m Customizable Aluminum Alloy Catamaran Work Boat with Cabin

Name: DK-CM32 9.8m Customizable Aluminum Alloy Catamaran Work Boat with Cabin
Brand: Qingdao Dookyu Crown Marine Co., Ltd.
Availability: InStock

Large Image : DK-CM32 9.8m Customizable Aluminum Alloy Catamaran Work Boat with Cabin

Product Details:

Contact Now

Detailed Product Description

DK-CM32 9.8m Customizable Aluminum Alloy Catamaran Work Boat with Cabin

Products Description

Aluminum alloy catamaran yacht - agile, stable and versatile offshore sailing expert 1. Ship type and structural design - the perfect balance of light weight and high strength Aluminum alloy catamaran structure: using ship standard 5083 aluminum alloy, taking into account both light weight and ultra-high corrosion resistance, the hull life is increased by more than 50%. Angled + V-shaped composite ship type: Front section deep V design: excellent wave-breaking effect, reducing navigation bumps Rear section angled platform: air lubrication effect is generated during high-speed navigation, resistance is reduced by 20%, and fuel consumption is more economical Catamaran wide deck layout: Double stability: 60% less roll amplitude than the same size monohull, more comfortable fishing/viewing 2. Power system - precisely matching offshore needs Dual Mercury 150HP outboard engine: 25kn cruising speed (full load 12 people), maximum speed can reach 32kn

Product Paramenters

Maximum length (including on-hook)	9.93m
Breadth	3.25m
Depth moulded	1.10m
Designed draft	0.48m
Displacement	6.1t
Max speed	25kn
Main engine power	150HP(110kW)×2
Fuel oil	250l*2

Due to text limitations, all configuration information cannot be displayed. Click here to get detailed configuration! Notice! We can make non-standard customization according to requirements. Tell me your requirements and we will provide free design solutions.

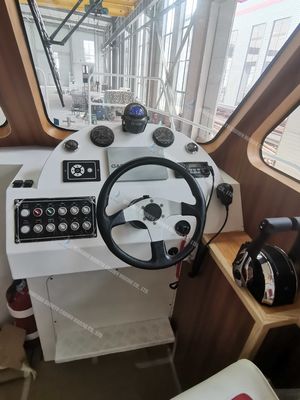

Details Images

1. High-precision positioning: equipped with GPS navigation system, real-time update of chart data, ensuring accurate navigation route, and stable operation even in complex sea areas or extreme weather.

Power system upgrade - powerful engine, customized sailing experience This ship not only has excellent sailing performance, but also provides flexible engine configuration solutions to ensure that whether it is pursuing speed, endurance or special needs, it can be perfectly matched! 1. Standard dual 150HP engines - powerful power, stable and efficient Super thrust: Dual 150HP engines provide surging power, Redundant safety guarantee: The dual-engine design ensures that it can still return safely when a single engine fails, and the reliability at sea is doubled. 2. Fully customized power solution - meet personalized needs Freely select engines: support upgrades to 300HP, 350HP or even hybrid systems, adapting to different scenarios such as racing, ocean-going, and silent cruising. Professional tuning service: adjust the transmission ratio and propeller matching according to customer needs to ensure that the power output is perfectly matched with the hull. New energy compatibility: optional electric/hybrid engines (such as with lithium battery packs) reduce noise and carbon emissions, suitable for ecologically sensitive waters.

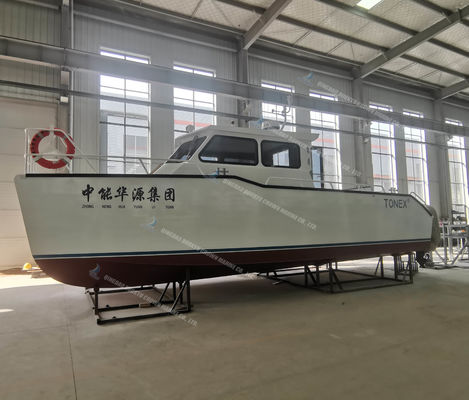

Production process

5083 aluminum-magnesium alloy, taking into account both corrosion resistance and weldability

Senior welder, professional construction team

Implement triple strict quality inspection during the production process to ensure zero-defect delivery

100% actual sea trial commitment - every ship can withstand the ultimate test of the sea

Product packaging

Company Profile

Dookyu Crown Marine Co., Ltd mainly produces a variety of Australian aluminum alloy small boats. The types of boats include various open boats,boats with windshields, center consoles, and various half- and full-position fishing boats. They are widely used in aquatic recreational activities such as fishing and paddling, light transportation and water operations.At the same time, the company is committed to creating a mass consumer boat suitable for leisure sports, so it is no longer a dream for people who love sea sports to have a yacht of their own!
